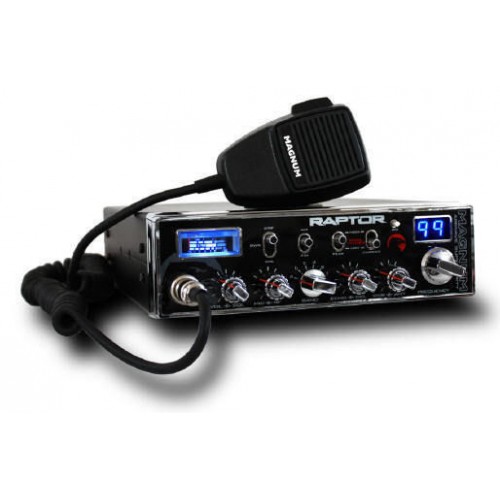

Magnum Raptor 3 10 Meter Mobile

Magnum Raptor 3 10 Meter Mobile
Brand: RF Limited
Product Code: P03-01218
Discontinued
This product is no longer available!

Magnum has cranked up the Raptor series with the Raptor III 10 Meter radio. This radio has all the great features of the Raptor II with an extra ERF7530 Final added in for more power. This brings it up to a respectable 175 watts PEP.

Raptor III Features:
10 Meter Amateur Transceiver
AM / FM Modes
True Dual Power Output - 175 & 40 Watts PEP
Selectable Peak and Carrier RF Output Settings
Front Panel Microphone Jack
Blue Back Lit LED Display
Built-In SWR Bridge
S/RF/SWR Meter - Blue LED Backlit
RF Gain and Microphone Gain Controls
SWR / Calibrate Meter and Controls
Fully automatic ANL / NB
TURBO Digital Echo - A Magnum Exclusive!
AMT - All Mode Talk-Back with Volume Control
Roger Beep with On/Off Control
Ext. Frequency Counter Jack on Rear Panel
MARS / CAP Capable (Permits Required)
1 Year Warranty

General Specifications:
Modes: AM/FM
Antenna Impedance: 50 Ohm, Unbalanced
Operating temperature: -10 C to + 60 C
Frequency control: Digital phase-lock loop (PLL) synthesizer
Frequency Accuracy: Better than +10 PPM from 0-40 C after 15 min warm up
Power requirement: 12-13.8V DC, negative ground
Dimensions (W x H x D): 7.75" x 2.25" x 10.75"

Transmitter Specifications:
Output Power
AM peak low: 40 watts PEP
AM peak high: 175 watts PEP
AM/FM carrier low: 2 watts
AM/FM carrier high: 40 watts
Final transistor: ERF7530 x 2
Spurious emissions: more than 50 dB below peak output power
Carrier suppression: more than 40 db below peak output power
FM deviation: +/- 2 kHz maximum
Frequency response: 400 to 2800 Hz
Microphone impedance: ECM, 600 to 1K ohms

P03-01218
